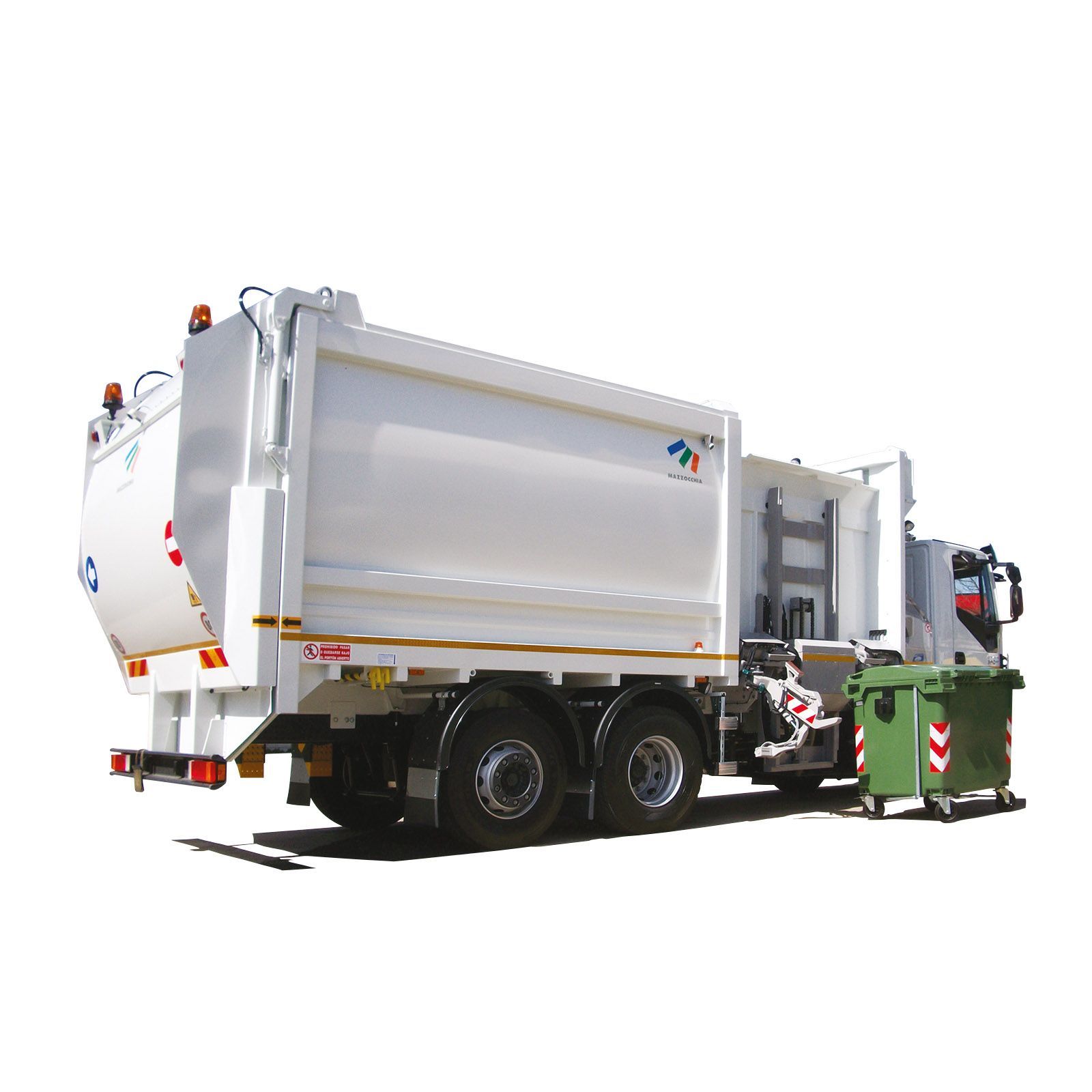

LATB is a side-loading compactor, single-operated, with a sealed container including the front hopper and a side bin-lift.
The articulated “single-bladed” compacting system guarantees a large capacity for loading and especially for compacting. Besides urban solid waste, it is ideal for the collection of:
paper, glass, plastic and leaves.
The bin lift is able to move the stationary and mobile containers with the DIN attachments, at a fairly long distance and on very uneven terrain.
Advanced electronic control of the hydraulic system, which guarantees the functionality and safety of the equipment according to the highest standards, with interface for data communication.
Touch-screen control panel with high definition graphics, through which it is possible to regulate the equipment according to work requirements.
It also includes a double flat-screen TFT Monitor in order to have total control over the work area.
Safety controls and devices are pursuant to Machinery Directive and to UNI EN 1501.
Body Volume
From 15 to 27 m³
Type
Side-loading compactor
Compaction System
Articulated single-bladed plate
Discharge System
Ejection plate
Operating System
Hydraulic
THE REPORTED DATA ARE INDICATIVE AND NOT BINDING. WE RESERVE THE RIGHT TO MAKE ANY CHANGES AT ANY TIME WITHOUT NOTICE.
DESCRIPTION | U.M. | LAT 2B / LAT 3B |
---|---|---|
BODY VOLUME | m³ | 15 - 24 / 19 -27 |
CHASSIS GVW (minimum) | TON | 18 - 26 / 26 |
MINIMUM WHEELBASE (day cab) | MM | 4.200 |
COMPACTING RATIO (adjustable) | 6:1 |
